473305A FUFDD MM OD Fiber LC OD - 80m RFM/RRH With NSN Uni Boot For Nokia
FUFDD MM OD Fiber LC OD-LC OD is 80m, used in RFM/RRH applications, the optical cable is OM2, flexible ended Uni boot NSN, compatible with Nokia 473305A. At both sides, LC duplex connectors adopt with flexible tube, it can be bended to any degree between -100° to +100°,and protected by IP seal boot.
Application
- Multi-purpose Outdoor.
- For connection between distribution box and RRH. 3.Deployment in Remote Radio Head cell tower applications.
Features
1.Easily add/install jumper cables for a future expansion.
2.Low insertion loss and added loss.
3.Height of attenuation.
4.Flexibility with small bending radius and excellent cable routing properties.
5.End-face geometry and quality superior than IEC and Telcordia standards.
6.The material in the jumper cable are all-weather and UV-resistant.
7.IP67 water and dust protection.
8.Mechanical performance: IEC 61754-20 standard.
9.RoHS and REACH materials compliant.
Connector Types
| Type | Reference | Note |
| LC | IEC 61754-20 | Single mode duplex | UPC: Blue connectors |
| Multimode duplex | UPC: Grey Connectors |
Dimensional Diagrams
-
NSN boot 180°dulex LC Fiber Optic Jumper
End1
End2
-
NSN boot 90°dulex LC Fiber Optic Jumper
End1
End2

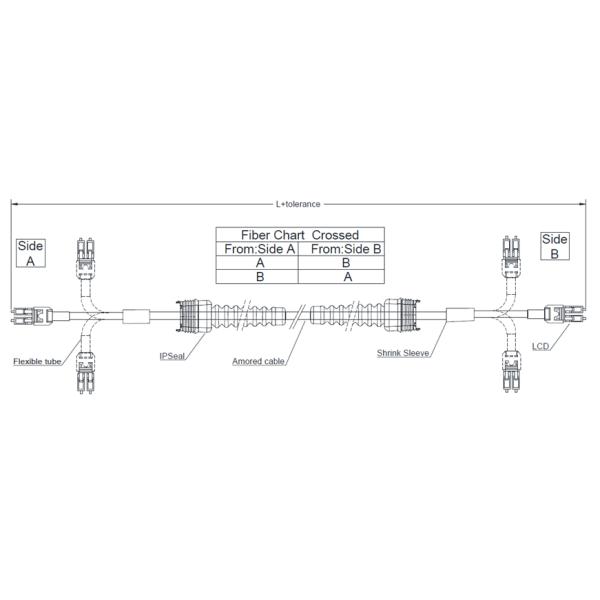

3. Flexible LC OD - LC OD Fiber Optic Jumper
Patch cord versions
| Jumper tolerance requirement |
| Overall length (L) (M) | length of tolerance(CM) |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |
Cable Structure- No Armoureed
| Cable Count | Out sheath Diameter (MM) | Weight (KG) | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature (℃) |
| short term | long term | short term | long term | short term | long term |
| 2 | 5.0±0.2 | 30 | 800 | 400 | 2000 | 1000 | 20D | 10D | -20 ~~ +70 |
Cable Parameters- Amoured
| Cable Count | Out sheath Diameter (MM) | Weight (KG) | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature (℃) |
| short term | long term | short term | long term | short term | long term |
| 2 | 5.0±0.2 | 45 | 400 | 800 | 2000 | 3000 | 20D | 10D | -20~~+70 |
Related NSN uni-boot Outdoor optical fiber jumper cable
| | | | | | |
FUFAS MM OD fiber LC
OD-LC OD dual 2 m | | | | | MM, LC dual OD IP-LC OD IP
dual, HF,OM2
Flexible ended |
FUFAR MM OD fiber LC
OD-LC OD dual 5 m | | | |
FUFBC MM OD fiber LC
OD-LC OD dual 10 m | | | |
FUFBA MM OD fiber LC
OD-LC OD dual 30 m | | | |
FUFBB MM OD fiber LC
OD-LC OD dual 50 m | | | |
FUFAY MM OD fiber LC
OD-LC OD dual 100 m | | | |
FUFBD MM OD fiber LC
OD-LC OD dual 200 m | | | |
